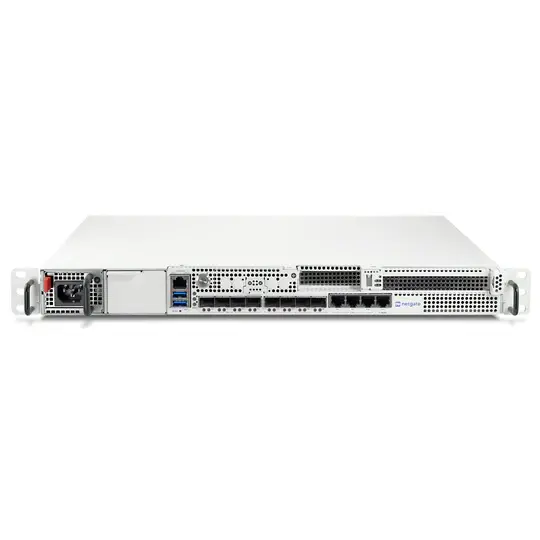

Netgate 8300 BASE pfSense+ Security Gateway

Experience unparalleled value and performance with the Netgate® 8300 Security Gateway powered by pfSense® Plus software. The Netgate 8300 is tailored for medium to large business, xSP, MSP/MSSP with high connectivity and stability requirements. This unit is enterprise-ready, featuring Netgate's most expandable chassis and hot-swappable PSUs, ensuring mission critical reliability and ease of maintenance.



This security gateway boasts a formidable 2.0 GHz, 8-core, 16-thread Intel® Xeon® D-1733NT processor with Intel AVX-512 for exceptional Firewall and VPN performance. The Netgate 8300 harnesses the power of Intel AVX-512 to accelerate VPN operations, bolstering throughput and reducing overhead while optimizing core firewall functions for enhanced network security and performance. With quad 10G SFP+ ports, quad 1G SFP ports, and triple 2.5G RJ-45 ports, plus expandability to 25G and 100G ports via PCIe cards, the Netgate 8300 future-proofs your network infrastructure, scaling effortlessly with your business.

Netgate 8300 BASE pfSense+ Security Gateway

Expected to be availble in August 2024
  • Specificatios:

    CPU: Eight Core 2.0 GHz Intel Xeon CPU. Delivers 36 Gbps routing for everyday iPerf3-bidirectional traffic and over 26 Gbps of firewall throughput

    Network Ports: 11 Independent 1G, 2.5G, and 10G ports. Maximum port flexibility - with 1G, 2.5G, and 10G Ethernet configurable as WAN or LAN across the combination of 11 RJ45 and SFP ports

    Expandability: 1 x PCIe 3.0 x8 port for half-length low profile cards and 1 xPCIe 4.0 x16 port for full-height three-quarters length cards

    Storage: 512 GB NVMe 2280 M-Key M.2 SSD

    Memory: 16 GB DDR4, ECC, 2400MHz via 2x 8 GB (expandable to 32 GB via 2x 16 GB UDIMM)

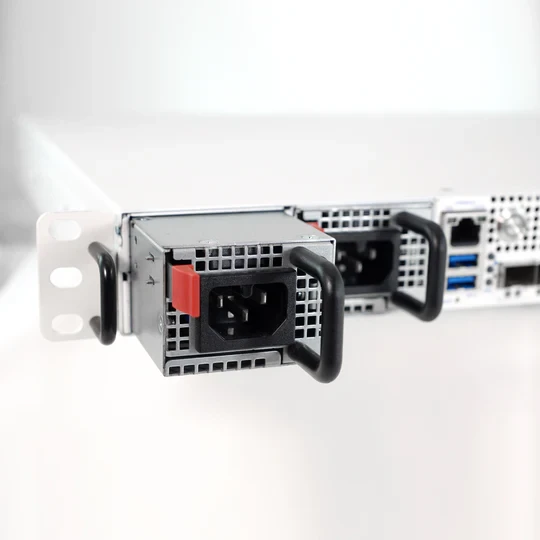

    Power: Dual hot-swappable PSU bays. 1 x Internal 500W PSU (hot-swappable) included, 110V/240V AC input

    Cooling: Active - 7x chassis fans at the rear of the enclosure

  • Prices displayed may be inapplicable. Please contact us for current pricing.
