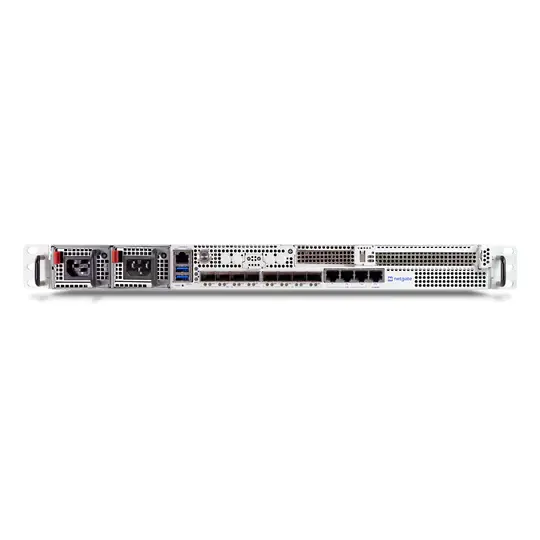

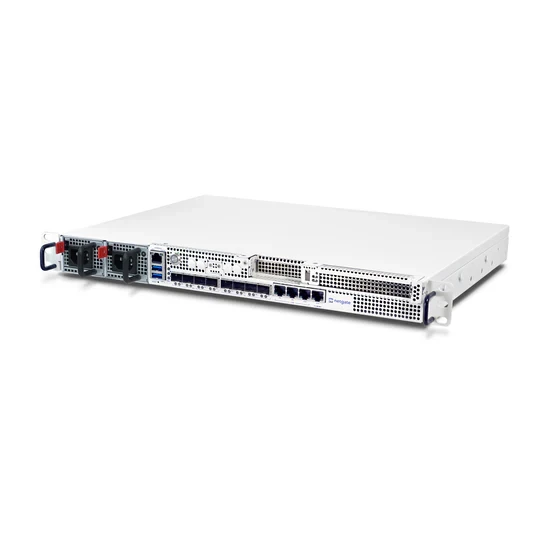

Netgate 8300 MAX pfSense+ Security Gateway

Experience unparalleled value and performance with the Netgate® 8300 Security Gateway powered by pfSense® Plus software. The Netgate 8300 is tailored for medium to large business, xSP, MSP/MSSP with high connectivity and stability requirements. This unit is enterprise-ready, featuring Netgate's most expandable chassis and hot-swappable PSUs, ensuring mission critical reliability and ease of maintenance.



Experience unparalleled value and performance with the Netgate® 8300 Security Gateway powered by pfSense® Plus software. The Netgate 8300 is tailored for medium to large business, xSP, MSP/MSSP with high connectivity and stability requirements. This unit is enterprise-ready, featuring Netgate's most expandable chassis and hot-swappable PSUs, ensuring mission critical reliability and ease of maintenance.

This security gateway boasts a formidable 2.0 GHz, 8-core, 16-thread Intel® Xeon® D-1733NT processor with Intel AVX-512 for exceptional Firewall and VPN performance. With quad 10G SFP+ ports, quad 1G SFP ports, and triple 2.5G RJ-45 ports, plus expandability with 10G, 25G and 100G ports via PCIe cards, the Netgate 8300 future-proofs your network infrastructure, scaling effortlessly with your business.

The Netgate 8300 maximizes your investment by delivering high-performance throughput at an incredibly competitive cost per gigabit. Compared to the 1541, it boasts a remarkable 47% firewall performance gain, 100% improvement in VPN and routing throughput, and a 175% increase in port density.

This compact 1U chassis optimizes space efficiency in server rooms and data centers, ideal for mission-critical deployments requiring robust high availability options and hotswap dual-power capability. Redefine your network standards by offering superior scalability, performance, and cost efficiency that exceeds industry expectations with Netgate's 8300 Security Gateway.

Netgate 8300 MAX pfSense+ Security Gateway

  • CPU: Eight Core 2.0 GHz Intel Xeon CPU.
    Delivers 36 Gbps routing for everyday iPerf3-bidirectional traffic and over 26 Gbps of firewall throughput

    Network Ports: 11 Independent 1G, 2.5G, and 10G ports.
    Maximum port flexibility - with 1G, 2.5G, and 10G Ethernet configurable as WAN or LAN across the combination of 11 RJ45 and SFP ports

    Expandability: 1 x PCIe 3.0 x8 for half-length low profile cards and 1 xPCIe 4.0 x16 for full-height three-quarters length cards

    Storage: 512 GB NVMe 2280 M-Key M.2 SSD

    Memory:
    BASE: 16 GB DDR4, ECC, 2400MHz via 2x 8 GB 1G x 72-Bit UDIMM
    (expandable to 32 GB via 2x 16 GB UDIMM)
    MAX: 32 GB DDR4, ECC, 2400MHz via 2x 16 GB UDIMM

    Power
    Dual hot-swappable PSU bays
    Base: 1 x Internal 500W PSU (hot-swappable) included, 110V/240V AC input
    MAX: 2 x Internal 500W PSU (hot-swappable) included, 110V/240V AC input


    Cooling: Active - 7x chassis fans at the rear of the enclosure
